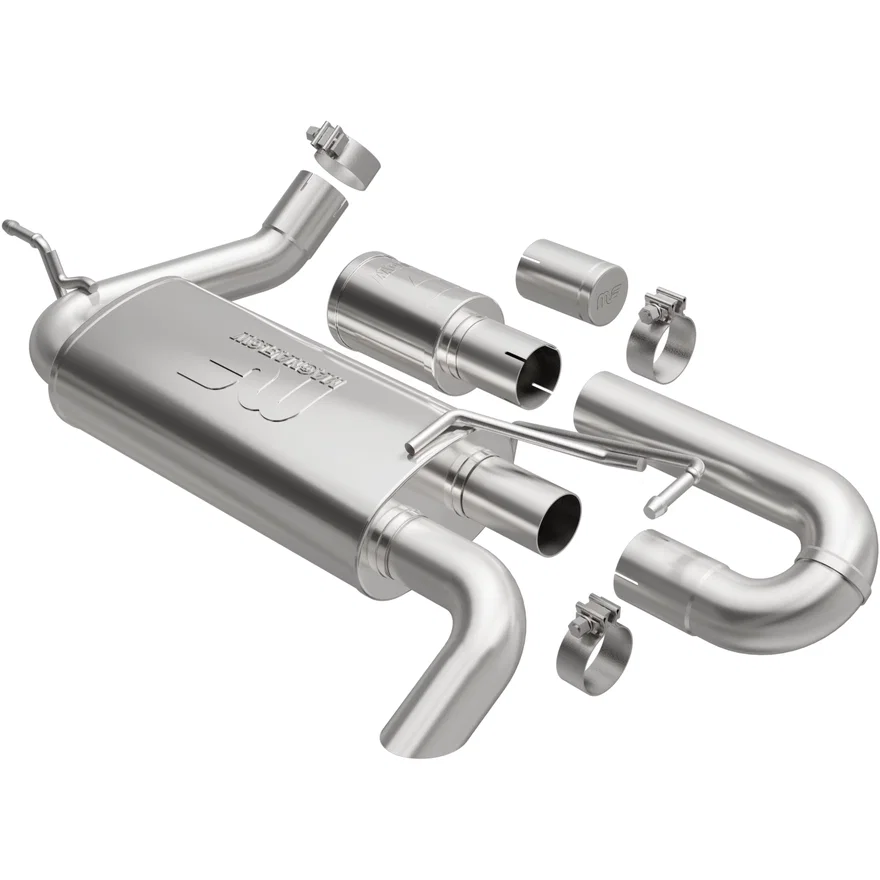

MagnaFlow Exhaust Products ® Overland Series™ Axle Back Performance Exhaust System for Jeep

Part # 19668SKU MAG19668

Set your vehicle above for a fit verdict. 3 vehicles listed below.

Specifications
BrandMagnaFlow Exhaust Products
Part typeExhaust System Kit
Catalytic Converter IncludedNo
Clamping TypeRound Band
Clamps IncludedYes
Exhaust Tip Quantity0
Exit StyleSingle Straight Passenger Side Rear
Gasket Or Seal IncludedNo
Hangers IncludedYes
Inlet TypeClamp-On
Main Piping Diameter2.5 in
Mounting Bracket IncludedNo
Muffler (Front) Body Height4 in
Muffler (Front) Body Length14 in
Muffler (Front) Body Width4 in
Muffler (Front) TypeTuned Chamber
Muffler (Rear) Body Height5 in
Muffler (Rear) Body Length18 in
Muffler (Rear) Body Width8 in
Muffler (Rear) TypeStraight-Through
Muffler FinishBrushed
Muffler TypeStraight-Through;Tuned Chamber
Pipe MaterialStainless Steel
SeriesOverland
TypeAxle Back
Valve IncludedNo
UPC / GTIN00888563185897
WarrantyLimited Lifetime warranty
  • High clearance exit
  • Dyno proven performance
  • No-Drone-Technology allows for a quiet cabin

Description

The MagnaFlow® Jeep Wrangler JK Overland Series™ Axle-Back Performance Exhaust System #19668 is engineered for off-road function and built to explore further. This Jeep Wrangler exhaust system is designed for the 2007-2018 Jeep Wrangler equipped with the V6 3.6L or 3.8L engine option. The high clearance exhau st design of this kit is designed to keep clear of any challenging terrain or obstacles you may come across. #19668 2.5” diameter mandrel bent main piping passes through an 18” straight-through oval muffler and No Drone Technology (NDT) tuned chamber before exiting in a high-clearance tucked tai lpipe to the rear of the passenger side. MagnaFlow® NDT utilizes passive quarter-wave noise cancellation to minimize the unwanted droning noises that can otherwise occur at highway cruising speeds. The entire Jeep exhaust kit can be tailored to your preferred exhaust tone by changing out which modu le is attached to the integrated muffler’s accessory port. The included pipe cap, J-pipe and NDT modules can be combined in various ways to mitigate a wide range of droning frequencies, so which exhaust sound profile you choose to go with is up to your driving style. Looking to minimize overall dr one? Simply connect the NDT module. Prefer a more traditional rendition of that famous MagnaFlow® exhaust tone? All you need to do is cover the accessory port with the included pipe cap. Exhaust kit #19668 utilizes a direct-fit, easy to install design that replaces your OEM exhaust system from near the rear axle on back. This performance exhaust system is made of durable stainless steel backed by MagnaFlow®’s limited lifetime warranty.

Fits these vehicles 3

YearMakeModelEngine
2007 - 2011JeepWrangler3.8L 231 V6
2012 - 2018JeepWrangler3.6L 220 V6
2018JeepWrangler JK3.6L 220 V6
