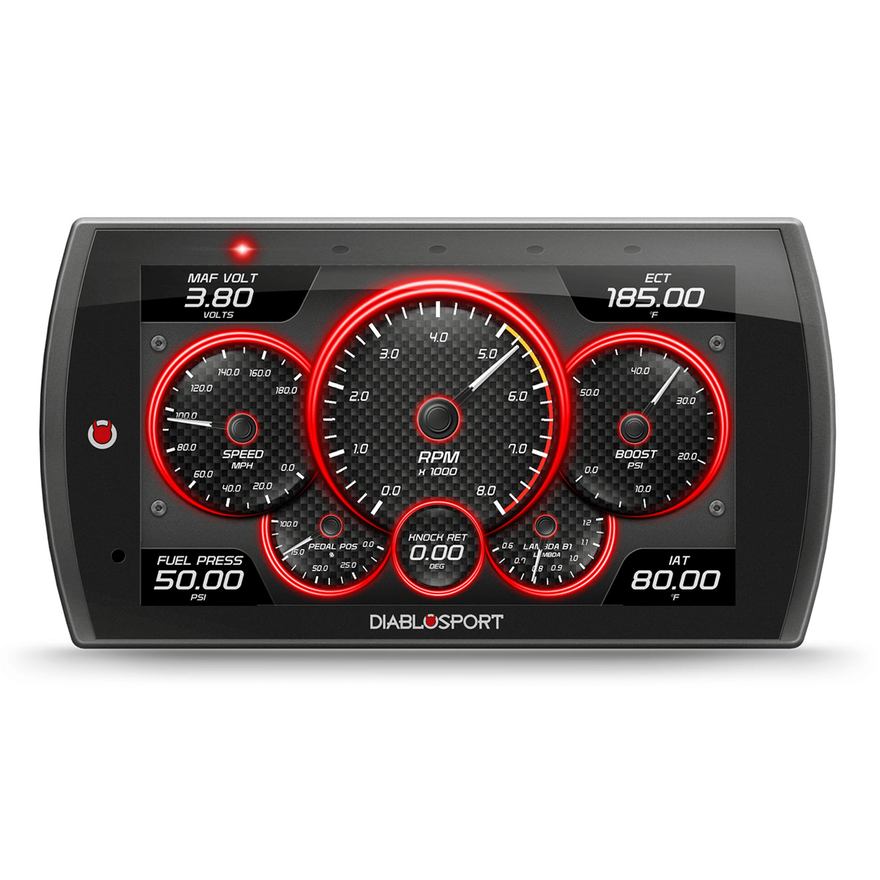

DiabloSport Trinity 2 EX w/ PCM Swap for Dodge
Part # 9322SKU DIA9322
Set your vehicle above for a fit verdict. 4 vehicles listed below.
| Brand | DiabloSport |
|---|---|
| Part type | Computer Chip Programmer |
| 5 Volt Data Logging Inputs | Yes |
| 50 State Legal | No |
| AC Adapter | No |
| Accepts Custom Tunes From CMR | Yes |
| Body Depth | 4 |
| Body Length | 9.5 |
| Body Material | ABS |
| Body Width | 6.25 |
| Brand | DiabloSport |
| C.A.R.B. EO # | D-770 |
| CARB (California) Compliant | No |
| Case Included | No |
| Category | Vehicles, Equipment, Tools, and Supplies |
| Color Display | Yes |
| Color Touch Screen Display | Yes |
| Custom Tuning | Yes |
| Data Logging | Yes |
| Emission Code | 7 |
| Erases Fault Code | Yes |
| Fuel Type | Gasoline |
| Grade Type | Performance |
| In Cab Monitoring | Yes |
| Instruction Manual Included | Yes |
| part type | Computer Chip Programmer |
| Performance Tunes | Yes |
| Product Type | In-Cabin Tuner |
| Software Included | Yes |
| Speedometer | Yes |
| Sub Category | Engine Service |
| Upgradable | Yes |
| UPC / GTIN | 00810115014737 |
| Warranty | Manufacturer's 1 Year Warranty |
- 2015-2017 Challenger Hellcat 6.2
- 2015-2017 Charger Hellcat 6.2
- Add up to 30 rwhp on premium fuel
- Tunes for 91 and 93 octane fuel provided
- Performance TCM tune included
- Disable Traction Control/ESP
- Raise or Lower Idle Speed by +/- 400 RPM
- Speed Limiter On/Off enabling increased top speed
- Target Cooling Fan temps can be set from 150°-230° for use with cooler t-stat
- Tire Size Adjustment 20”-44”, allows for correcting speedometer for different tires
- WOT Fuel Adjustment – 1-7K RPM +/- 20%, allows for fine tuning Air/Fuel Ratio
- WOT MBT Spark 1-7K RPM +/- 10
- WOT Spark – 1-7k RPM +/- 10
- Adjust idle RPM
- Full color, 5" touch screen display
- Customizable Gauge layouts
- Preloaded tunes for increased performance
- Tons of end user based adjustable parameters
- Upload your own background images
- Built in performance tests (0-60, 1/4 mile, etc)
Description
The all-new Trinity (T2) 50-State PCM Swap is the most advanced emissions compliant performance programmer and monitoring setup of its kind for 2015+ Dodge Hellcat applications. Featuring a high resolution, 5" capacitive touch screen, full swipe functionality, industry-leading gauge designs, jaw dropping power potential and powerful, yet simple, user interface. The T2 is unlike anything else on the market. We understand that there are an increasing number of counties and states that are requiring emissions testing. In addition to investing in RandD to deliver a meaningful power and overall performance improvement, DiabloSport recognizes the need for 50-state legal products. We've developed the T2 to include 50-State legal tuning covered by a CARB Executive Order number. Now there is no need to fear your SMOG testing center as you can pass those tests while tuned with Power You Can Feel from DiabloSport. You can run equipped with tunes for daily driving, towing and performance all while maintaining emissions compliance. This PCM Swap kit includes a DiabloSport Trinity 2 and a one-time unlocked PCM cross shipment.
More from DiabloSport
| 8345 | $746.99 |
| 8245 | $746.99 |
| 8246 | $927.99 |
| 8225-R | $1,378.99 |
| PKITJK363015-I3 | $2,817.99 |
| PKITDR57ET21-I3 | $2,902.99 |
| Year | Make | Model | Submodel | Engine |
|---|---|---|---|---|
| 2015 | Dodge | Challenger | SRT Hellcat | 6.2L 376 V8 |
| 2016 | Dodge | Challenger | SRT, SRT Hellcat | 6.2L 376 V8 |
| 2017 | Dodge | Challenger | SRT Hellcat | 6.2L 376 V8 |
| 2015 - 2017 | Dodge | Charger | SRT Hellcat | 6.2L 376 V8 |
