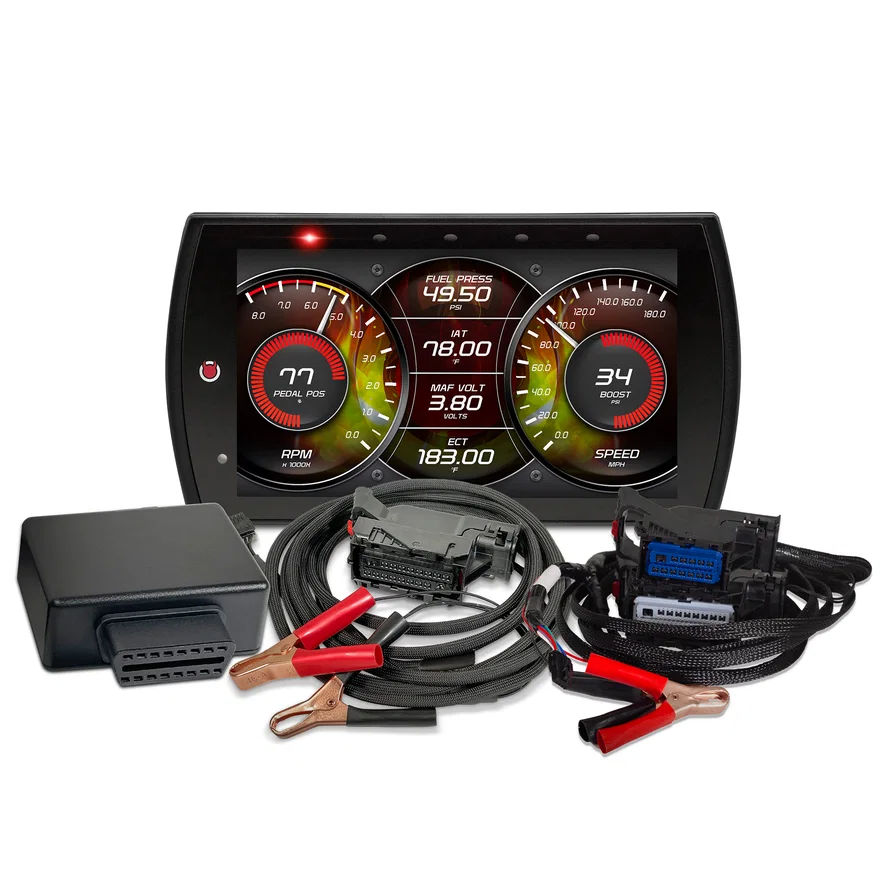

DiabloSport Trinity 2 GM E90/T93 Unlock and Tune Kit
Part # 9225-RSKU DIA9225-R
Set your vehicle above for a fit verdict. 4 vehicles listed below.
| Brand | DiabloSport |
|---|---|
| Part type | Computer Chip Programmer |
| 5 Volt Data Logging Inputs | Yes |
| 50 State Legal | No |
| AC Adapter | No |
| Accepts Custom Tunes From CMR | Yes |
| Auto Dimming Screen | Yes |
| Body Material | ABS |
| Brand | DiabloSport |
| CARB (California) Compliant | No |
| Case Included | No |
| Category | Tuners and Programmers |
| Color Display | Yes |
| Color Touch Screen Display | Yes |
| Custom Tuning | Yes |
| Data Logging | Yes |
| Emission Code | 7 |
| Erases Fault Code | Yes |
| Fuel Type | Gasoline |
| Grade Type | Regular |
| In Cab Monitoring | Yes |
| Instruction Manual Included | Yes |
| part type | Computer Chip Programmer |
| Performance Tests | Yes |
| Performance Tunes | Yes |
| Personal Computer and Mac Compatible | Yes |
| Product Type | In-Cabin Tuner |
| Software Included | Yes |
| Speedometer | Yes |
| Sub Category | Engine Service |
| Systems Covered | Engine |
| Upgradable | Yes |
| UPC / GTIN | 00810009939801 |
| Warranty | Manufacturer's 1 Year Warranty |
- 2019-2022 5.3/6.2 GM Trucks
- ECM and TCM unlock included!
- Unlock and Tune, at home!
- Preloaded tunes for multiple octane levels
- Full color, 5" touchscreen
- Support for 5.3L and 6.2L V8 applications with 6, 8 or 10 speed transmissions
- Supports Custom Tuning for ECM and TCM through our CMR sfotware!
- Disable Dynamic Fuel Management for full time V8 operation
- Throttle Boost setting for adjustable throttle feel
- Adjust speedometer for larger tires (26"-38")
- Calibrate speedometer for gear change (3.42-5.13)
- Remove speed limiter for increased top speed
- Adjust engine rev limiter for increased RPM range (+/- 400 RPM)
- Adjust engine idle speed in Park/Neutral and Drive
- New ‘Keep Auto Stop Start Setting’ allows you to disable the system using the button on the dash and it stays that way!
- New ‘Keep Drive Mode Setting’ allows you to select a drive mode and it will remember that mode next time you start the truck!
- Customizable gauge layouts and background images
- Supports our Expandable Accessory System
- Includes windshield mount
Description
Owners of 2019–2022 GM gas trucks have long been waiting for a reliable tuning solution, and DiabloSport has delivered with the Trinity T2 9225-R Kit. This complete package includes the industry-leading Trinity T2 on-dash programmer along with the locksmith device and harnesses required to unlock both the ECM and TCM in your truck, giving you full access to performance tuning.
More from DiabloSport
| 8345 | $746.99 |
| 8245 | $746.99 |
| 8246 | $927.99 |
| 8225-R | $1,378.99 |
| 9345-D | $1,151.99 |
| 32454 | $1,216.99 |
| Year | Make | Model | Engine |
|---|---|---|---|
| 2019 - 2021 | Chevrolet | Silverado 1500 | 5.3L 325 V8, 6.2L 376 V8 |
| 2022 | Chevrolet | Silverado 1500 LTD | 5.3L 325 V8, 6.2L 376 V8 |
| 2019 - 2021 | GMC | Sierra 1500 | 5.3L 325 V8, 6.2L 376 V8 |
| 2022 | GMC | Sierra 1500 Limited | 5.3L 325 V8, 6.2L 376 V8 |
